A-Reusable rubber return plates and accessories
1-H98-901-003

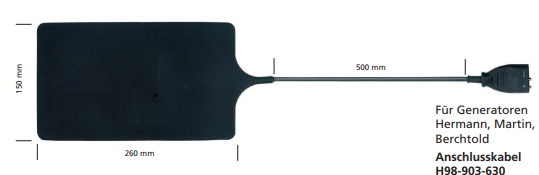

For generators Hermann, Martin, Berchtold connecting cables H98-903-630 H98-903-650
2- H98-901-004
For generators Hermann, Martin, Berchtold, Erbe with 4 m cable
3-H98-901-005
For generators Hermann, Martin, Berchtold connecting cables H98-903-630 H98-903-650
B-Single-use return plates
1-H98-901-101
without cable, adult size 50 pcs./Box Conductive area non-splitted 134 cm2 Temperature rise < 3°C max. impedance approx. 1 Ω
2-H98-901-102
without cable, children size 50 pcs./Box Conductive area non-splitted 72 cm2 Temperature rise < 5°C max. impedance approx. 2 Ω

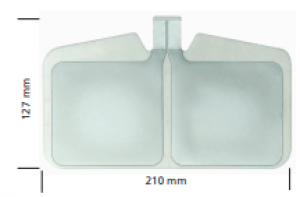

3-H98-901-103
without cable, adult size 50 pcs./Box Conductive area splitted 160 cm2 Temperature rise < 3°C max. impedance approx. 1 Ω
4-H98-901-104
without cable, children size 50 pcs./Box Conductive area splitted 72 cm2 Temperature rise < 5°C max. impedance approx. 2 Ω
5-H98-901-105
without cable, oval, universal 50 pcs./Box Conductive area splitted 105cm² Temperature rise < 3°C max. impedance approx. 1.5 Ω
